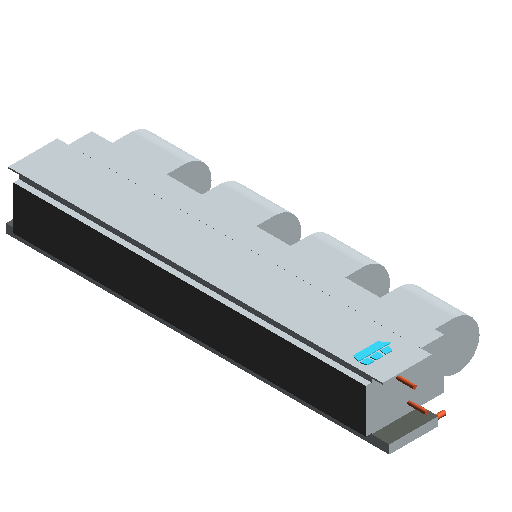

两管制风机盘管

  • 缩略图
  • 3D

产品参数

标识数据
Designation-
Product NameFan Coil Unit
类型图像-
URLwww.goujianwu.com
型号-
Revit Family Version-
制造商-
注释记号-
成本-
部件代码-
ARI Number-
类型注释-
说明找构件就上构件坞
尺寸标注
Blower Offset 41222.375mm
Blower Offset 2450.85mm
Blower Offset 3835.025mm
Drain Pan Width1657.35mm
Blower 11
Blower 41
Height254mm
Coil Width1524mm
Depth546.1mm
Blower Offset 163.5mm
Supply Air Height190.5mm
Blower 31
Blower 21
机械 - 负荷
Total Cooling Capacity16822Btu/h
Sensible Cooling Capacity12736Btu/h
Electric Heat Capacity3412.14Btu/h
机械 - 流量
Cooling Leaving Dry Bulb Temperature62.6ºF
Design Supply Air Flow670ft³/min
Heating Leaving Dry Bulb Temperature111.1ºF
Cooling Entering Wet Bulb Temperature67.0000000000001ºF
Heating Entering Dry Bulb Temperature70.0000000000001ºF
Cooling Entering Dry Bulb Temperature80.0000000000001ºF
Supply External Static Pressure0
Cooling Leaving Wet Bulb Temperature59.2ºF
电气
Phase1
Electric Heat Voltage120V
Nominal HP-
Load184VA
Voltage115V
Minimum Circuit Current15A
Frequency60Hz
机械
Cooling Coil Water Pressure Drop4.7ftH2O
Supply Fan Motor Speed1
Chilled Water Leaving Temperature55.0000000000001ºF
Design Chilled Water Flow3.4gal/m
Cooling Coil Row Count2
Fan Quantity2
Chilled Water Entering Temperature45.0000000000001ºF
Motor Quantity1
卫浴
Actual Condensate Drain Flow0gal/m
限制条件
Family Load Status-
