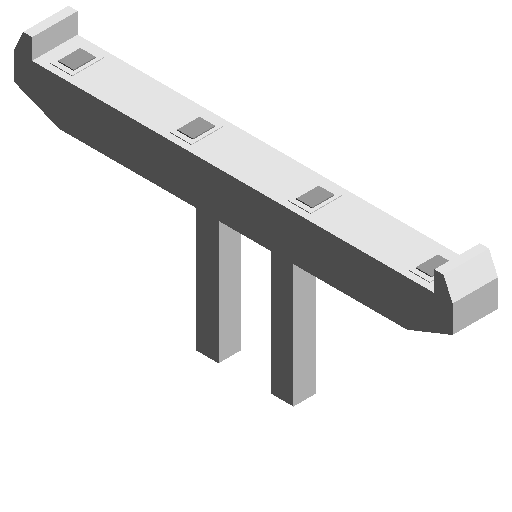

单柱双柱墩

  • 缩略图
  • 3D

产品参数

材质和装饰
Padstone Material-
结构材质-
Bearing Material-
Column Material-
Cap Material-
标识数据
类型注释-
成本-
注释记号-
类型图像-
型号-
URLwww.goujianwu.com
剖面名称关键字-
说明永久免费族库下载,找构件就上构件坞
部件代码-
制造商-
构造
Bearing Plate Number4
Bearing Plate Height30mm
Bearing Plate Width980mm
Girder Plate Height42mm
Bearing Plate Depth1400mm
Girder Plate Depth980mm
Bearing Plate Offset1780mm
Girder Plate Width686mm
尺寸标注
Side Height1200mm
Padstone Group Length15740mm
Cap Width2000mm
Column Diameter1000mm
Cap Length19300mm
Block Width800mm
Bottom Cap Length15300mm
Cap Height2000mm
Column Offset From Bottom Cap Edge6000mm
Block Height900mm
其他
Column Radius500mm
