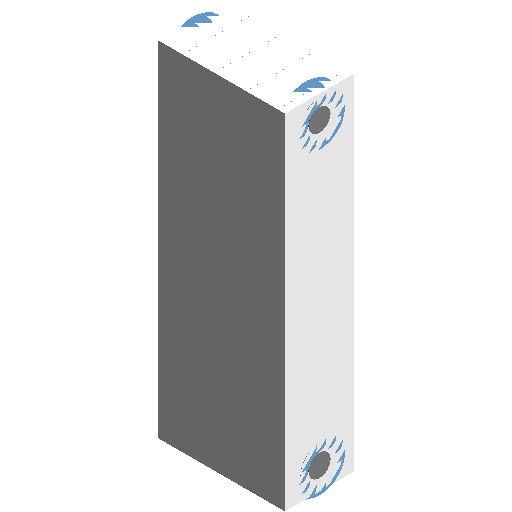

翅片散热器-01.rfa

  • 缩略图
  • 3D

产品参数

标识数据
magiStopValveProductId-
说明永久免费族库下载,找构件就上构件坞
类型注释-
Productdata-
注释记号-
类型图像-
制造商-
magiStopValveProductFamilyId-
部件代码-
magiRadiatorValveProductFamilyId-
magiPartTypeId301
magiProductId-
型号-
URLwww.goujianwu.com
VersionID-
magiRadiatorValveProductId-
成本-
尺寸标注
concLocTheta1157.3062°
concLocR1238.461736972622mm
Length184mm
MC_R17.49999999999999mm
MC_R27.49999999999999mm
concLocPhi1180°
Width100mm
concDirTheta190.0000000000001°
Height500mm
concDirPhi1180°
concDirTheta290.0000000000001°
concLocR2238.461736972622mm
concLocTheta222.6938°
concLocPhi2180°
W250mm
Height/2250mm
concDirPhi2180°
图形
2DSymbolTypeFilled0
2DSymbolTypeEmpty1
magiFamilyGeom-
RadiatorFilled2DSymbolType1
机械
Tout0ºC
Tin0ºC
